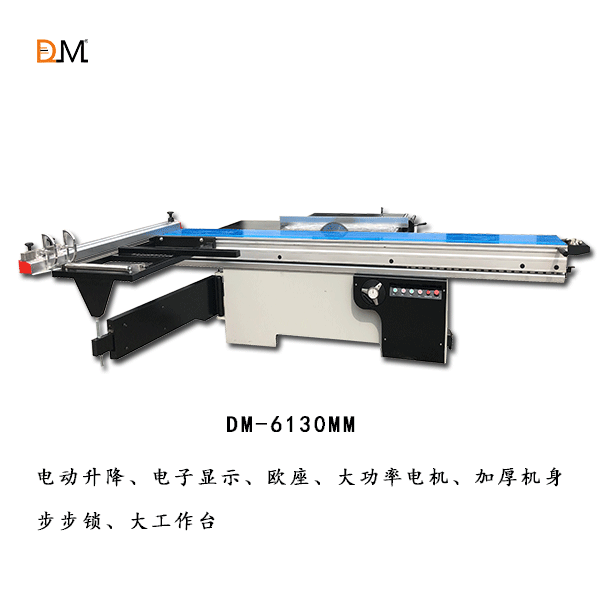

| Model number | DM-MJ6128 | DM-MJ6130 | DM-MJ6132 | DM-MJ6116 |
| 滑臺尺寸 Dimension Of Sliding Table | 2800*375/390mm | 3000*375/390/415mm | 3200*375/390/415mm | 1600*375mm |
| 最大鋸切長度 Gross Cut Capacity | 2800mm | 3000mm | 3200mm | 1600mm |
| 最大鋸切寬度 Width Of Cut Between Saw Blade And Rip Fence | 1250mm | 1250mm | 1250mm | 1250mm |
| 最大鋸切厚度 Height Of Cut f 300mm | 80mm | 80mm | 80mm | 80mm |
| 鋸片直徑 Saw Blade Diameter | Φ300mm(Φ250-Φ315) | Φ300mm(Φ250-Φ315) | Φ300mm(Φ250-Φ315) | Φ300mm(Φ250-Φ315) |
| 45°時最大鋸切厚度 (300mm) Height Of Cut With Saw Blade 300mm At 45° | Φ55mm | Φ55mm | Φ55mm | Φ55mm |
| 主軸轉速 Speed Of Main Saw Spindle | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
| 主軸直徑 Tilting Saw Blade | Φ30mm | Φ30mm | Φ30mm | Φ30mm |
| 鋸片角度 Tilting Saw Blade | 0-45° | 0-45° | 0-45° | 0-45° |
| 主電機功率 Main Motor | 4KW/5.5KW | 5.5KW | 5.5KW | 4KW |
| 劃線鋸直徑 Scoring Saw Blade Diameter | Φ120mm | Φ120mm | Φ120mm | Φ120mm |
| 劃線鋸轉速 Speeg Of Scoring Saw Blade | 8000r/min | 8000r/min | 8000r/min | 8000r/min |
| 副軸直徑 Scoring Spindle Diameter | Φ20mm | Φ20mm | Φ20mm | Φ20mm |
| 副電機功率 Scoring Motor | 0.75KW | 1.1KW | 1.1KW | 0.75KW |
| 凈重 Net Weight | 650kg | 680kg | 700kg | 450kg |
| 外形尺寸 Overall Dimensions | 2800*1000*830mm | 3000*1000*830mm | 3200*1000*830mm | 1650*2500*830mm |
